Brand Name : MENSION
Model Number : MS-E130
Certification : CE RoHS
Place of Origin : CN
MOQ : 1 Set
Price : Contact Us
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 1000 Sets Per Month
Delivery Time : 2 - 7 Working Days
Packaging Details : One Plywood For One Set
Crimping Range : 14 - 64mm
Hose Size : 1/4'' - 2''
Die Sets : 10 sets
Color : Blue or customized
Max. Opening : 25mm
Crimping Force : 640T
Product : P20 Hose Pressing Machine
Application : Workshop
Voltage : 220V Or 380V
Frequency : 50HZ
Size : 630*450*600mm
Weight : 200Kg
2 Inch P20 Hydraulic Hose Crimper Automatic Cable Pressing Machine
MS-E130 CRIMPING MACHINE FOR HYDRAULIC HOSE
DESCRIPTION
Hose crimpers MS-E130 are essential tools in industries where reliable hose connections are critical, ensuring that hoses remain securely attached to fittings under pressure. They play a vital role in maintaining the integrity of hydraulic systems, automotive components, and various industrial applications. These machines are available from various manufacturers, offering a range of capabilities to meet specific crimping needs.
ADVANTAGES
TECHNICAL DATA
Model | MS-E130 Crimping Machine For Hose |
Crimping Range | 14 - 64 (mm) |
Crimping Force | 640 (T) |
Hose Size | 1/4'' - 2'' (inch) |
Max. Opening | 25 (mm) |
Die Sets | 10 |
Die Set Type | P20 |
System Pressure | 31.5 (Mpa) |
Accuracy | 0.01 (mm) |
Control | MS |
Standard Voltage | 220 (V) |
Motor Power | 3 (KW) |
Length | 630 (mm) |
Width | 450 (mm) |
Height | 600 (mm) |
Weight | 200 (KG) |
MS-E130 HOSE CRIMPER MACHINE DIE SETS
Die No. | Crimping Range | Length |
6* | 6 - 8mm | 35 |
8* | 8 - 10mm | 35 |
10* | 10 - 12mm | 35 |
12* | 12 - 14mm | 35 |
14 | 14 - 16mm | 60 |
16 | 16 - 20mm | 60 |
20 | 20 - 22mm | 60 |
22 | 22 - 26mm | 60 |
26 | 26 - 30mm | 60 |
30 | 30 - 38mm | 70 |
38 | 38 - 46mm | 70 |
46 | 46 - 54mm | 80 |
54 | 54 - 64mm | 80 |
64 | 64 - 69mm | 80 |
69* | 69 - 76mm | 100 |
NOTE
1) Customized crimping die sets are available;
2) Special voltage 110V, 208V, 240V, 415V are availbale;
3) * for non standard die sets.
OPTIONAL ACCESSORIES
1) Quick Die Change Tool;
2) Die Set Rack/ Machine Stand;
3) UC/CNC Control;
4) Foot Pedal Switch;
5) Pressure Gauge;
6) Normal Stand.

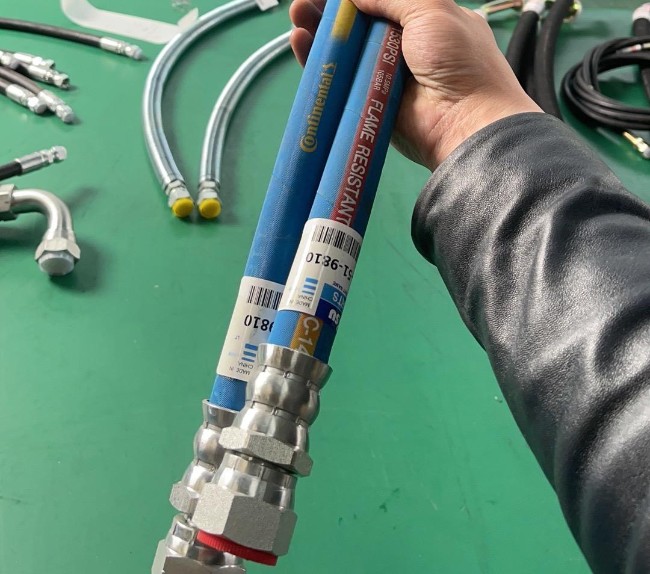

► APPLICATIONS FOR P20 HYDRAULIC HOSE CRIMPING MACHINE
![]() |
P20 Crimping Machine Hydraulic Hose Press Machine 2 Inch Pressure Hose Crimper Images |
