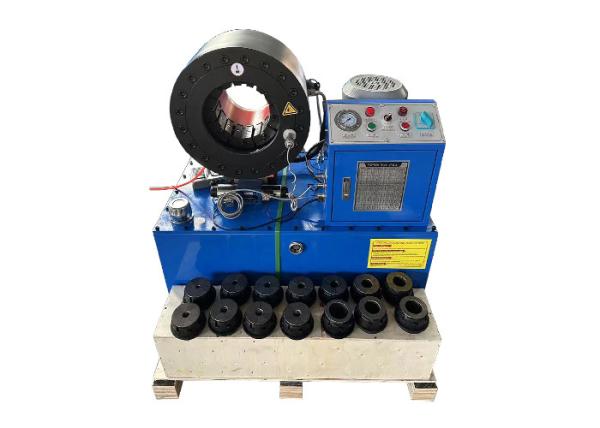

4 Inch Hydraulic High Pressure Hose Crimping Machine Industrial Hose Crimper

Product Categories
Weifang Mension Machinery Technology Co., Ltd.
Contact Now

4 Inch Hydraulic High Pressure Hose Crimping Machine Industrial Hose Crimper

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-S102

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 187mm

Hose Size : 1/4 - 4inch

Die Sets : 16+1

Color : Blue

Max. Opening : 30mm

Crimping Force : 1500T

Product Name : S102 Hose Crimper

Application : Production

Voltage : 380V

Power : 4KW

Size : 850*530*980mm

Weight : 500Kg

Contact Now

HYDRAULIC RUBBER HOSE CRIMPER MACHINE MS - S102

DESCRIPTION

If you're seeking a reliable solution to streamline your hose assembly process, look no further than the 4-Inch Hose Crimping Machine. This efficient equipment is designed to simplify the crimping of large-diameter hoses, making it an indispensable tool for various industries. With its sturdy construction and hydraulic system, the machine ensures secure connections, minimizing the risk of leaks and enhancing overall performance.

Featuring user-friendly controls and a straightforward interface, operators can effortlessly navigate the crimping process, saving valuable time and improving productivity. Whether you work in manufacturing, construction, or other sectors that rely on robust hose assemblies, the 4-Inch Hose Crimping Machine is the ideal choice to enhance efficiency and achieve reliable results.

MAIN ADVANTAGES

1. Reliable: Ensures secure and leak-free connections.
2. Efficient: Streamlines the hose assembly process.
3. Precise: Delivers consistent and uniform crimps.
4. User-friendly: Intuitive controls for easy operation.
5. Versatile: Suitable for various industries.

TECHNICAL DATA

Model

MS-S102 Hose Crimper

Crimping Range

14 - 187 (mm)

Crimping Force

1500 (T)

Hose Size

1/4 - 4 (inch) 6 Layers

Max. Opening

30 (mm)

Die Sets

16 + 1

Die Set Type

51 + 102

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

4 (KW)

Length

850 (mm)

Width

530 (mm)

Height

980 (mm)

Weight

500 (KG)

4 Inch Hydraulic High Pressure Hose Crimping Machine Industrial Hose Crimper

51 HOSE CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 15 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

23 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70

47

47 - 55 mm

 80

55

55 - 63 mm

 80

63

63 - 75 mm

 80

75

75 - 87 mm

 100
87 87 - 100 mm 120
100 100 - 115 mm 120
115 115 - 130 mm 120
130 130 - 147 mm 120

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;

OPTIONAL

- Quick Change Tool

- UC control;
