1'' Finn Power P16HP Manual Hose Pressing Machine Crimping Machine Hose

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-P16

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 45mm

Hose Size : 1/4 - 1inch

Die Sets : 7

Color : Blue

Max. Opening : 20mm

Crimping Force : 150T

Product Name : P16 Hose Crimper Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : Manual Pump

Size : 400*320*300mm

Weight : 32Kg

Contact Now

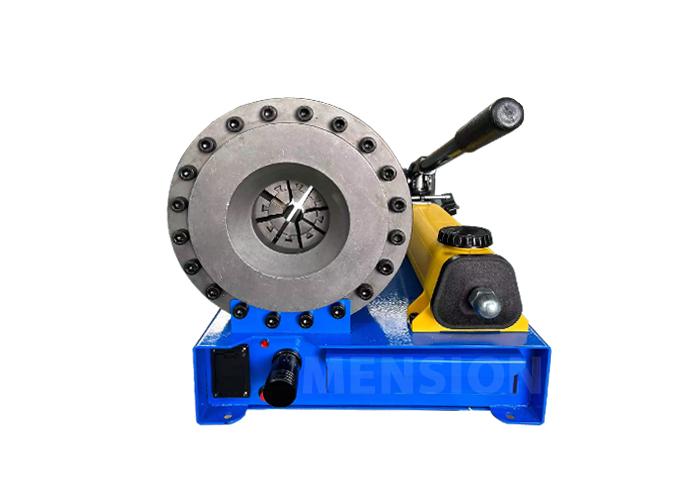

1'' Manual Hose Pressing Machine High Precision P16 Hose Crimper

1'' INCH MANUAL HOSE PRESSING MACHINE P16

DESCRIPTION

The P16 Hose Crimping Machine offers numerous advantages that set it apart from the competition.

Here are some key benefits:

1. Versatility: The P16 is specifically designed for 1" hose assembly, providing optimal compatibility and performance for a wide range of applications.

2. Precision Crimping: With its precision engineering, the P16 ensures accurate and consistent crimping, resulting in secure and leak-free hose connections.

3. User-Friendly: The P16 features an intuitive interface, making it easy to operate and reducing the learning curve. Its streamlined design enables efficient and hassle-free hose assembly.

4. Durability: Built with robust materials and reliable components, the P16 is built to withstand heavy-duty use, ensuring long-lasting performance and minimal maintenance requirements.

5. Efficiency: The P16 improves productivity by offering fast and efficient crimping capabilities, allowing you to complete hose assembly tasks in a timely manner.

6. Professional Results: By utilizing the P16, you can achieve professional-grade hose connections with consistent quality, ensuring the highest standards of performance and reliability.

Experience the advantages of the P16 Hose Crimping Machine and elevate your hose assembly operations to new heights.

TECHNICAL DATA

Model P16 Hose Crimping Tool
Crimping Range 14 - 47 (mm)
Crimping Force 150 (T)
Hose Size 1/4 - 1 (inch)
Max. Opening 20 (mm)
Die Sets 7
Die Set Type P16
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage

Manual Pump
Motor Power Manual Pump
Length 400 (mm)
Width 320 (mm)
Height 300 (mm)
Weight 32 (KG)

1'' Finn Power P16HP Manual Hose Pressing Machine Crimping Machine Hose

P16 HOSE PRESSING MACHINE DIE SETS

Die No. Crimping Range Length
6* 6 - 8 mm 55
8* 8 - 10 mm 55
10* 10 - 12 mm 55
12* 12 - 14 mm 55
14 14 - 16 mm 55
16 16 - 19 mm 55
19 19 - 23 mm 55
23 23 - 27 mm 55
27 27 - 31 mm 55
31 31 - 35 mm 65
35 35 - 41 mm 65

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Max. opening is the stroke between die sets fully closed and fully opened.

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

- UC control;

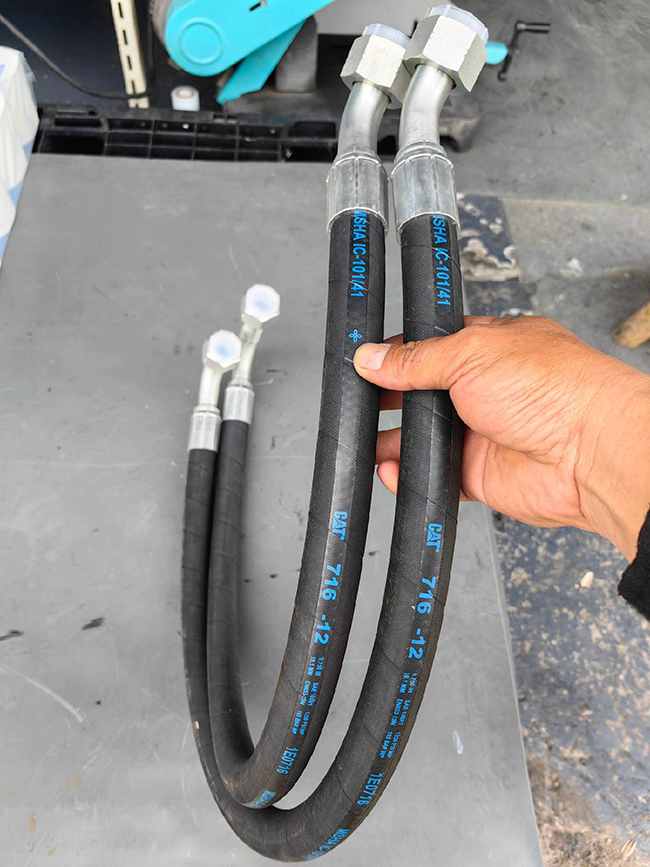

P16 HDYARULIC CRIMPING MACHINE APPLICATIONS

1'' Finn Power P16HP Manual Hose Pressing Machine Crimping Machine Hose
