Finn Power P16HP Manual Hydraulic Hose Crimping Machine Fuel Hose Crimp

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-P16

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 45mm

Hose Size : 1/4 - 1inch

Die Sets : 7

Color : Blue

Max. Opening : 20mm

Crimping Force : 150T

Product Name : P16 Rubber Hose Pressing Tool

Application : Workshop

Oil Tank : 20L

Power : Manual Pump

Size : 400*320*300mm

Weight : 32Kg

Contact Now

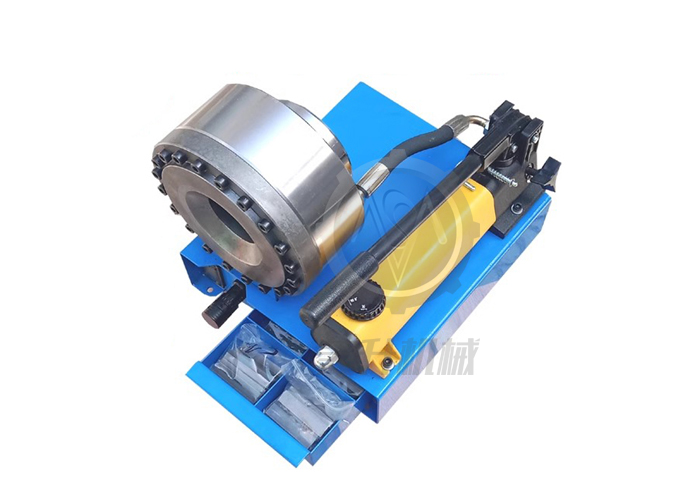

PORTABLE RUBBER PIPE PRESSING TOOL P16

DESCRIPTION

The P16HP Manual Hand Pump Hose Crimper is a versatile and robust tool designed for reliable hose assembly and repair tasks. This manual crimping machine offers exceptional flexibility, making it an ideal choice for professionals who require portable and on-site hose crimping solutions.

The P16HP features a durable construction and a user-friendly design, ensuring precise and secure crimps with minimal effort. Its compact size and lightweight nature allow for easy transportation and operation in various work environments. Compatible with a wide range of hose sizes and fittings, the P16HP Manual Hand Pump Hose Crimper provides dependable performance and exceptional versatility for professionals in diverse industries.

MAIN FEATURES

1. Advanced Hydraulic System:
- Ensures powerful and efficient crimping.

2. On-Site Assembly and Repair:
- Convenient for immediate hose maintenance.

3. Wide Application Range:
- Suitable for multiple industries and tasks.

4. Minimal Maintenance Requirements:
- Long-term reliability with reduced upkeep.

TECHNICAL DATA

Model P16 Hose Pressing Tool
Crimping Range 14 - 47 (mm)
Crimping Force 150 (T)
Hose Size 1/4 - 1 (inch)
Max. Opening 20 (mm)
Die Sets 7
Die Set Type P16
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage

Manual Pump
Motor Power Manual Pump
Length 400 (mm)
Width 320 (mm)
Height 300 (mm)
Weight 32 (KG)

Finn Power P16HP Manual Hydraulic Hose Crimping Machine Fuel Hose Crimp

P16 HOSE PRESSING MACHINE DIE SETS

Die No. Crimping Range Length
6* 6 - 8 mm 55
8* 8 - 10 mm 55
10* 10 - 12 mm 55
12* 12 - 14 mm 55
14 14 - 16 mm 55
16 16 - 19 mm 55
19 19 - 23 mm 55
23 23 - 27 mm 55
27 27 - 31 mm 55
31 31 - 35 mm 65
35 35 - 41 mm 65

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Max. opening is the stroke between die sets fully closed and fully opened.

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

- UC control;

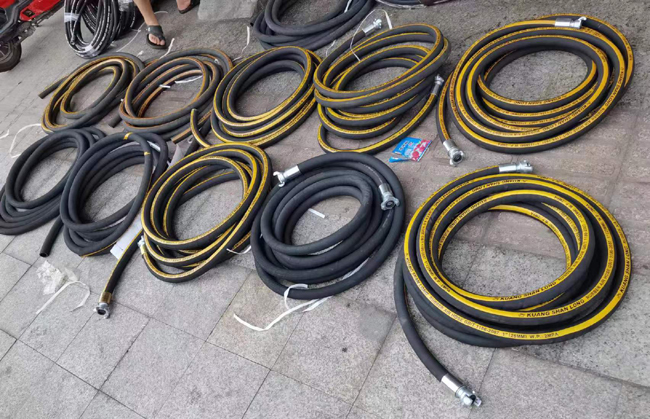

P16 HDYARULIC CRIMPING MACHINE APPLICATIONS

Finn Power P16HP Manual Hydraulic Hose Crimping Machine Fuel Hose Crimp
