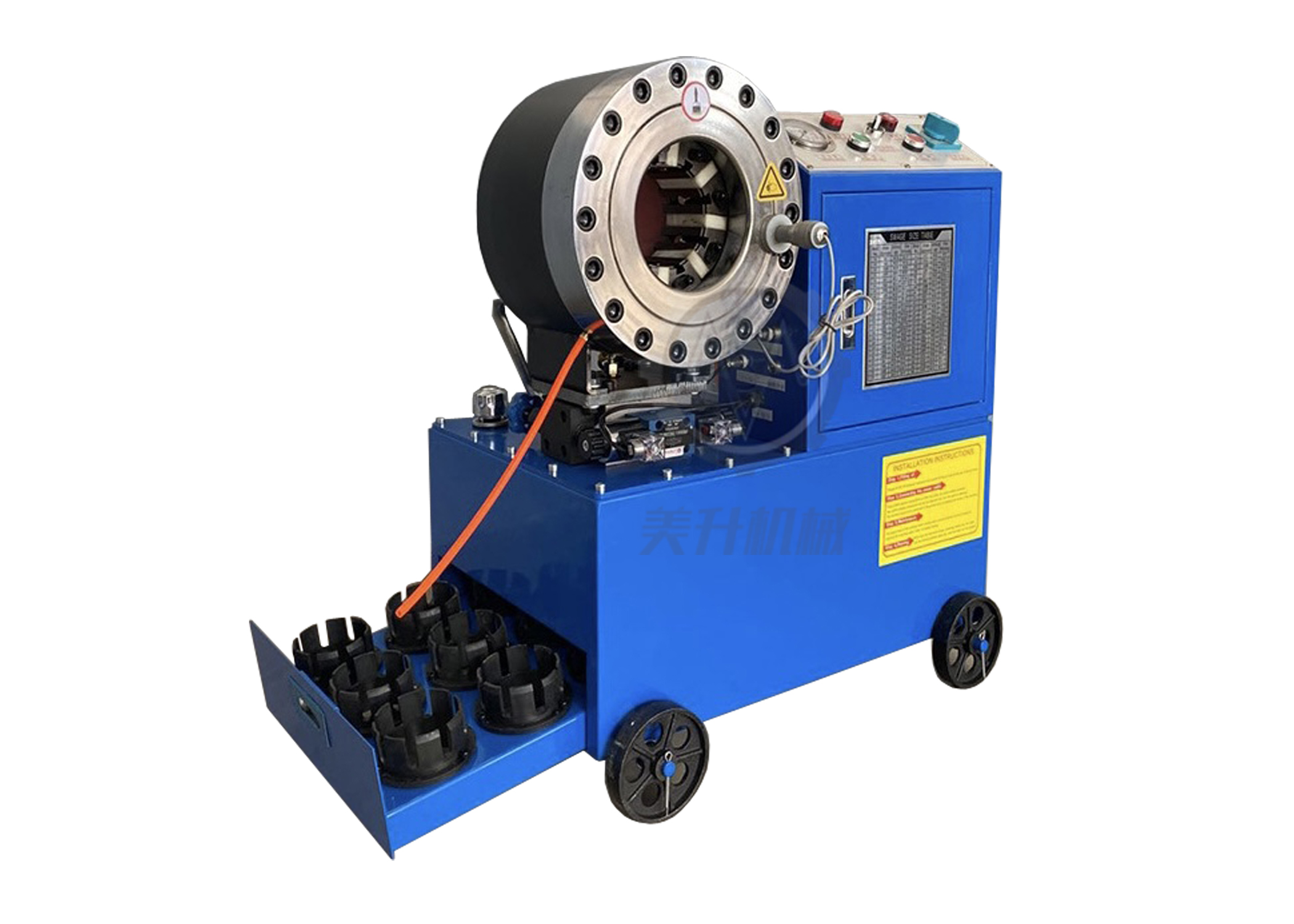

ELECTRIC MANUAL HOSE CRIMPING MACHINE MS-51
DESCRIPTION
MS-51 hose crimper is suitable for high pressure hydraulic hose from 1/4'' to 2'' with 4 layers pressing and for industrial pipe and cable up to 3'' inch pressing. It is with single phase 220V electric power, ideal for personal workshop which supplies hydraulic hose assembly and offer the hose repair service.
MAIN FEATURES
► Die sets with smooth surface, no harm on ferrule surface;
► Wide crimping range from 6mm to 51mm;
► Large working stroke;
► Automatic hose pressing;
► Moving wheel, easier to move it.
TECHNICAL DATA
| Model | MS - 51 Manual Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) Single Phase |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
51 HOSE CRIMPER DIE SETS
| Die No. | Crimping (mm) | Length (mm) |
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 90 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
• UC Control

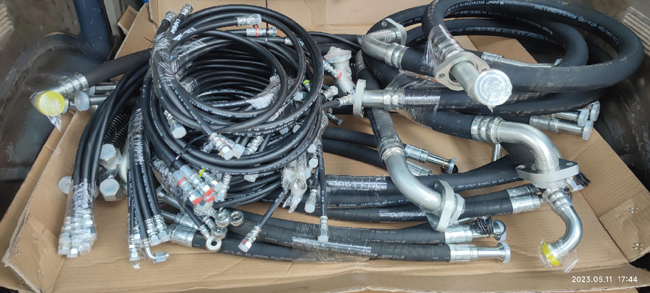

► CRIMPING MACHINE ARE MAINLY USED FOR HYDRAULIC HOSE ASSEMBLY MAKING
