2 Inch Hydraulic Cable Crimping Machine Hydraulic Hose End Crimper

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-51KH

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

Product Name : 51KH Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3KW

Size : 670*430*1520mm

Weight : 310Kg

Contact Now

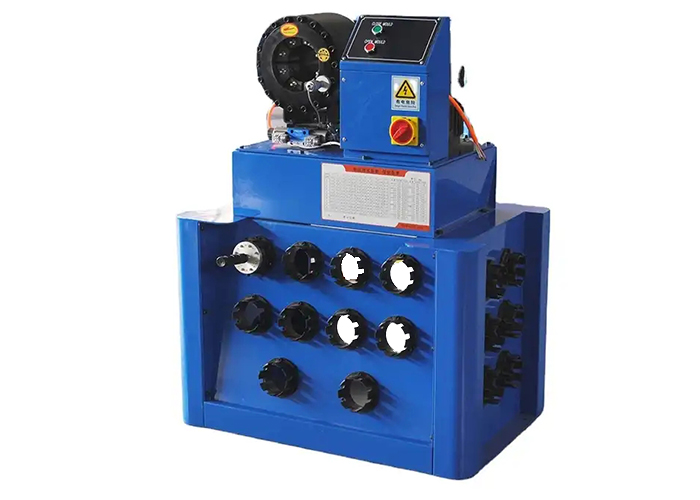

HYDRAULIC HOSE CABLE CRIMPING MACHINE MS-51KH

DESCRIPTION

MS-51KH hose crimper is electric 220V/ 380V power drive model with crimping ability from 1/8 inch to 2 inch one to six steel wire braided hydraulic hose. It is equiped with quick change tool and die set rack to supply the operator a more convenient operating experience.

For all the hydraulic hose crimping machines, they can be controlled with machenical device (also we call it a MS control) and also by CNC didgital control (also we call it a UC control) which is more intelligent. Each have its advantage and disadvantage. For the MS control is that it can be easily for maintenance, but not so smart; for the UC control, it is more intelligent and smart, but it will cost much.

MAIN FEATURES

1. High efficiency with fast speed;

2. Ergonomic operate panel design;

3. Accurate diameter control dial;

4. Energy saving.

TECHNICAL DATA

Model

MS-51KH Cable Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

1520 (mm)

Weight

310 (KG)

2 Inch Hydraulic Cable Crimping Machine Hydraulic Hose End Crimper

51 CRIMPER MACHINE DIE SETS

Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 15 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

23 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70

47

47 - 55 mm

 80

55

55 - 63 mm

 80

63

63 - 69 mm

 80

69*

69 - 76 mm

 100

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
