High Pressure Hydraulic Hose Crimper P32 Crimping Machine Finn Power Swage

Product Categories
Weifang Mension Machinery Technology Co., Ltd.
Contact Now

High Pressure Hydraulic Hose Crimper P32 Crimping Machine Finn Power Swage

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-E130-I

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2.5inch

Die Sets : 13

Color : Blue

Max. Opening : 31mm

Crimping Force : 650T

Product Name : E130-I Swaging Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3.75KW

Size : 650*550*1360mm

Weight : 310Kg

Contact Now

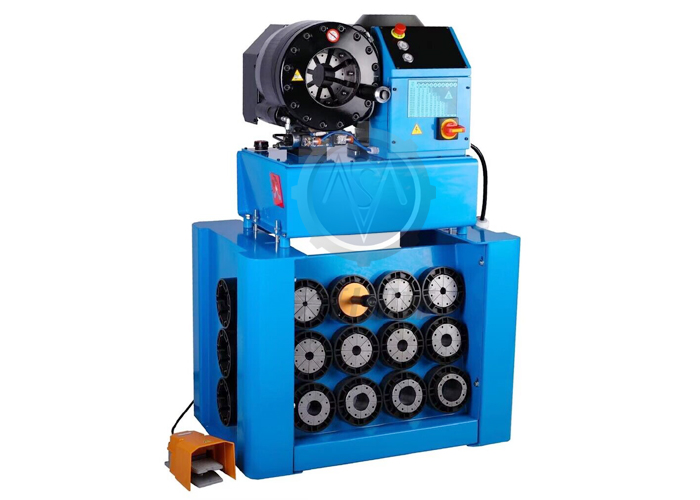

HYDRAULIC SWAGING MACHINE MS - E130-I

DESCRIPTION

MS-E130-I hydraulic hose crimper machine is with compact structure and bench top design, it can be easily mouted to most repair workshops and hose assembly making store production lines. There is 13 sets standard dies with crimpig range from 14mm to 69mm along with the crimper, this crimping range can be bigger with customized die sets.

This hydraulic hose crimping machine can be used for max 2-1/2 inch high pressure rubber oil hose assembly making, max 3 inch industrial low pressure pipe pressing, metal stainless steel tube swaging, wire rope swaging, cable crimping.

ADVANTAGES

1. Quick speed with powerful hydraulic pressing force;

2. High accuracy for hose fitting swaging;

3. Ergonomic design, easy to operate;

4. Emergency stop to guarantee the safety;

5. Quick die change tool to improve the crimping machine efficiency.

TECHNICAL DATA

Model

MS-E130-I Hydraulic Crimper Machine

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2 1/2 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3.75 (KW)

Length

650 (mm)

Width

550 (mm)

Height

1360 (mm)

Weight

310 (KG)

High Pressure Hydraulic Hose Crimper P32 Crimping Machine Finn Power Swage

P32 HOSE FITTING CRIMPER MACHINE DIE SETS

Die No.

Crimping Range

 Length

6*

6 - 8 mm

 55

8*

8 - 10 mm

 55

10*

10 - 12 mm

 55

12*

12 - 14 mm

 55

14

14 - 16 mm

 55

16

16 - 19 mm

 55

19

19 - 22 mm

 55

22

22 - 26 mm

 70

26

26 - 30 mm

 70

30

30 - 34 mm

 70

34

34 - 39 mm

 75

39

39 - 45 mm

 75

45

45 - 51 mm

 90

51

51 - 57 mm

 90

57

57 - 63 mm

 100

63

63 - 69 mm

 110

69

69 - 78 mm

 110

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
