Manual Hydraulic Crimping Machine Pressure Hose Fitting Press Hose Crimper

Name: Manual Hydraulic Crimping Machine Pressure Hose Fitting Press Hose Crimper
Brand: MENSION
Price: 1 USD

Quality Manual Hydraulic Crimping Machine Pressure Hose Fitting Press Hose Crimper wholesale

Brand Name : MENSION

Model Number : MS-E130-I

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2.5inch

Die Sets : 13

Color : Blue

Max. Opening : 31mm

Crimping Force : 650T

Product Name : E130-I Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3.75KW

Size : 650*550*1360mm

Weight : 310Kg

Contact Now

Manual Hydraulic Crimping Machine E130 - I For Pressure Hose Fitting Press

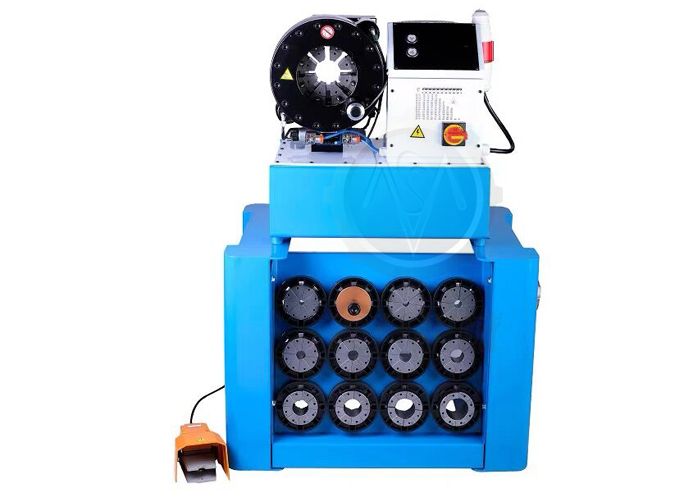

HYDRAULIC CRIMPING MACHINE MS - E130-I

DESCRIPTION

MS-E130-I hose-crimping machine has been designed to crimp up to 2 1/2'' diameter with 4-spiral hoses. It is fast and easy to use. It offeres big crimping force, is a reliable crimper for workshop hose repair and maintenance service.

ADVANTAGES

1. Integrated design;

2. Reasonalble operation height;

3. Automatic crimping;

4. Strength saving for operator.

TECHNICAL DATA

Model	MS-E130-I Crimping Machine
Crimping Range	14 - 87 (mm)
Crimping Force	650 (T)
Hose Size	1/4 - 2 1/2 (inch)
Max. Opening	31 (mm)
Die Sets	13
Die Set Type	P32
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3.75 (KW)
Length	650 (mm)
Width	550 (mm)
Height	1360 (mm)
Weight	310 (KG)

Manual Hydraulic Crimping Machine Pressure Hose Fitting Press Hose Crimper

P32 HOSE CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8 mm	55
8*	8 - 10 mm	55
10*	10 - 12 mm	55
12*	12 - 14 mm	55
14	14 - 16 mm	55
16	16 - 19 mm	55
19	19 - 22 mm	55
22	22 - 26 mm	70
26	26 - 30 mm	70
30	30 - 34 mm	70
34	34 - 39 mm	75
39	39 - 45 mm	75
45	45 - 51 mm	90
51	51 - 57 mm	90
57	57 - 63 mm	100
63	63 - 69 mm	110
69	69 - 78 mm	110

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
