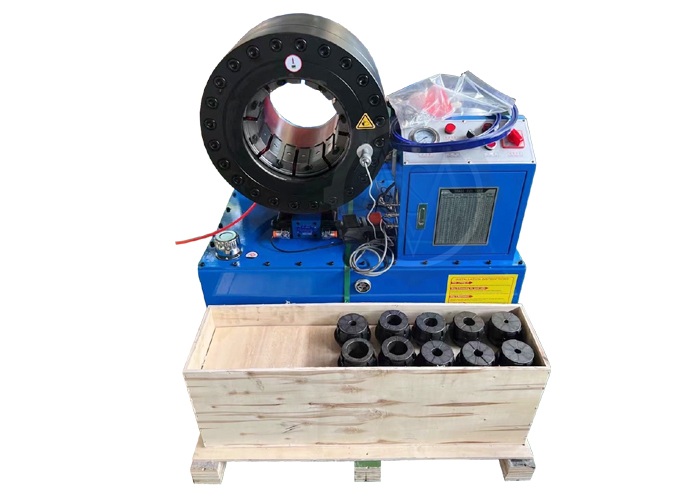

4 Inch 102mm High Pressure Hose Crimper Hydraulic Pipe Pressing Machine

Name: 4 Inch 102mm High Pressure Hose Crimper Hydraulic Pipe Pressing Machine
Brand: MENSION
Price: 1 USD

Quality 4 Inch 102mm High Pressure Hose Crimper Hydraulic Pipe Pressing Machine wholesale

Brand Name : MENSION

Model Number : MS-S102

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 187mm

Hose Size : 1/4 - 4inch

Die Sets : 16+1

Color : Blue

Max. Opening : 30mm

Crimping Force : 1500T

Product Name : S102 AC Hose Crimping Machine

Application : Production

System Pressure : 31.5Mpa

Power : 3KW

Size : 850*530*980mm

Weight : 500Kg

Contact Now

HYDRAULIC PRESSURE HOSE CRIMPING MACHINE MS - S102

DESCRIPTION

MS-S102 hydraulic pipe pressing machine is a big size hose crimper which is suited for industrial and hydraulic hose up to 4 inch (102mm) 6 layers assembly making. With adapter dies, it can crimp small hose 1/4 inch size. The crimping size is controlled by a high precise micrometer to enable the operator a beautiful effect.

MAIN ADVANTAGES

1. For hose from 1/4'' to 4'';

2. Large pressing force;

3. Ergonomic design;

4. Quality oil pump.

TECHNICAL DATA

Model	MS-S102 Hose Crimping Machine
Crimping Range	14 - 187 (mm)
Crimping Force	1500 (T)
Hose Size	1/4 - 4 (inch) 6 Layers
Max. Opening	30 (mm)
Die Sets	16 + 1
Die Set Type	51 + 102
System Pressure	31.5 (Mpa)
Accuracy	0.05 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	4 (KW)
Length	850 (mm)
Width	530 (mm)
Height	980 (mm)
Weight	500 (KG)

4 Inch 102mm High Pressure Hose Crimper Hydraulic Pipe Pressing Machine

51 HOSE CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8 mm	35
8*	8 - 10 mm	35
10*	10 - 12 mm	35
12*	12 - 15 mm	35
15	15 - 19 mm	60
19	19 - 23 mm	60
23	23 - 26 mm	60
26	26 - 31 mm	60
31	31 - 36 mm	70
36	36 - 41 mm	70
41	41 - 47 mm	70
47	47 - 55 mm	80
55	55 - 63 mm	80
63	63 - 75 mm	80
75	75 - 87 mm	100
87	87 - 100 mm	120
100	100 - 115 mm	120
115	115 - 130 mm	120
130	130 - 147 mm	120

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;

OPTIONAL

- Quick Change Tool

- UC control;
