Industrial Hose Crimping Machine Hose Crimper Hydraulic Hose Pressing Machine

Name: Industrial Hose Crimping Machine Hose Crimper Hydraulic Hose Pressing Machine
Brand: MENSION
Price: 1 USD

Brand Name : MENSION

Model Number : MS-E130-I

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2 1/2 inch

Die Sets : 13

Color : Blue

Max. Opening : 31mm

Crimping Force : 650T

System Pressure : 31.5Mpa

Power : 3KW

Size : 650*550*1360mm

Weight : 310Kg

Product Name : E130-I Hydraulic Hose Crimping Machine

Contact Now

Industrial Pressure Hose Crimping Machine E130 - I Ergonomic Human Design

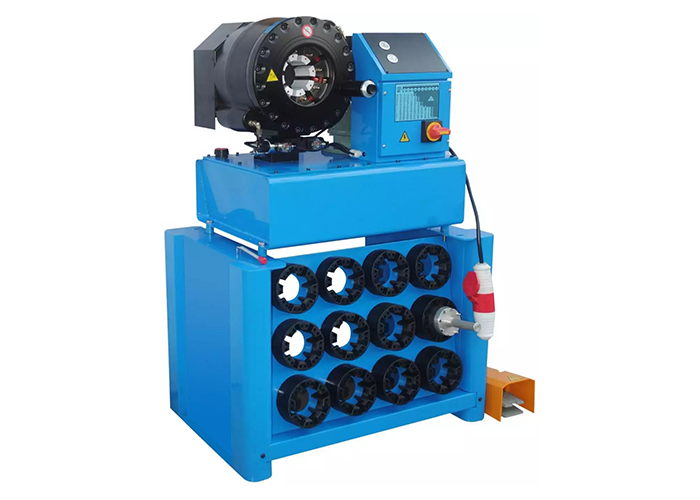

INDUSTRIAL HYDRAULIC HOSE CRIMPING MACHINE MS-E130-I

DESCRIPTION

MS-E130-I pressure hose crimping machine with hydraulic power is the most favored type for mass production of hose assembly. It is capable of crimping hose from 1/8'' to 2 1/2'', and for 3'' industrial hose.

FEATURES

1. Die set rack, enable an easy and safe die installing;

2. Double bevel master die, high accuracy and big force;

3. Pedal and button control, safe and improve productivity;

4. Customer freindly button control, quick and easy.

TECHNICAL DATA

Model	MS-E130-I Hydraulic Crimping Machine
Crimping Range	14 - 87 (mm)
Crimping Force	650 (T)
Hose Size	1/4 - 2 1/2 (inch)
Max. Opening	31mm
Die Sets	13
Die Set Type	P32
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3 (KW)
Length	650 (mm)
Width	550 (mm)
Height	1360 (mm)
Weight	310 (KG)

Industrial Hose Crimping Machine Hose Crimper Hydraulic Hose Pressing Machine

P32 CRIMPING MACHINE DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8mm	55
8*	8 - 10mm	55
10*	10 - 12mm	55
12*	12 - 14mm	55
14	14 - 16mm	55
16	16 - 19mm	55
19	19 - 22mm	55
22	22 - 26mm	70
26	26 - 30mm	70
30	30 - 34mm	70
34	34 - 39mm	75
39	39 - 45mm	75
45	45 - 51mm	90
51	51 - 57mm	90
57	57 - 63mm	100
63	63 - 69mm	110
69	69 - 78mm	110

NOTE

• * for non standard die sets;

• Customized die sets are available;

• Special voltage 110V, 208V, 240V, 415V are availbale;
