Industrial Swage Hose Crimper Machine MS - 51 For Hose Repair Service

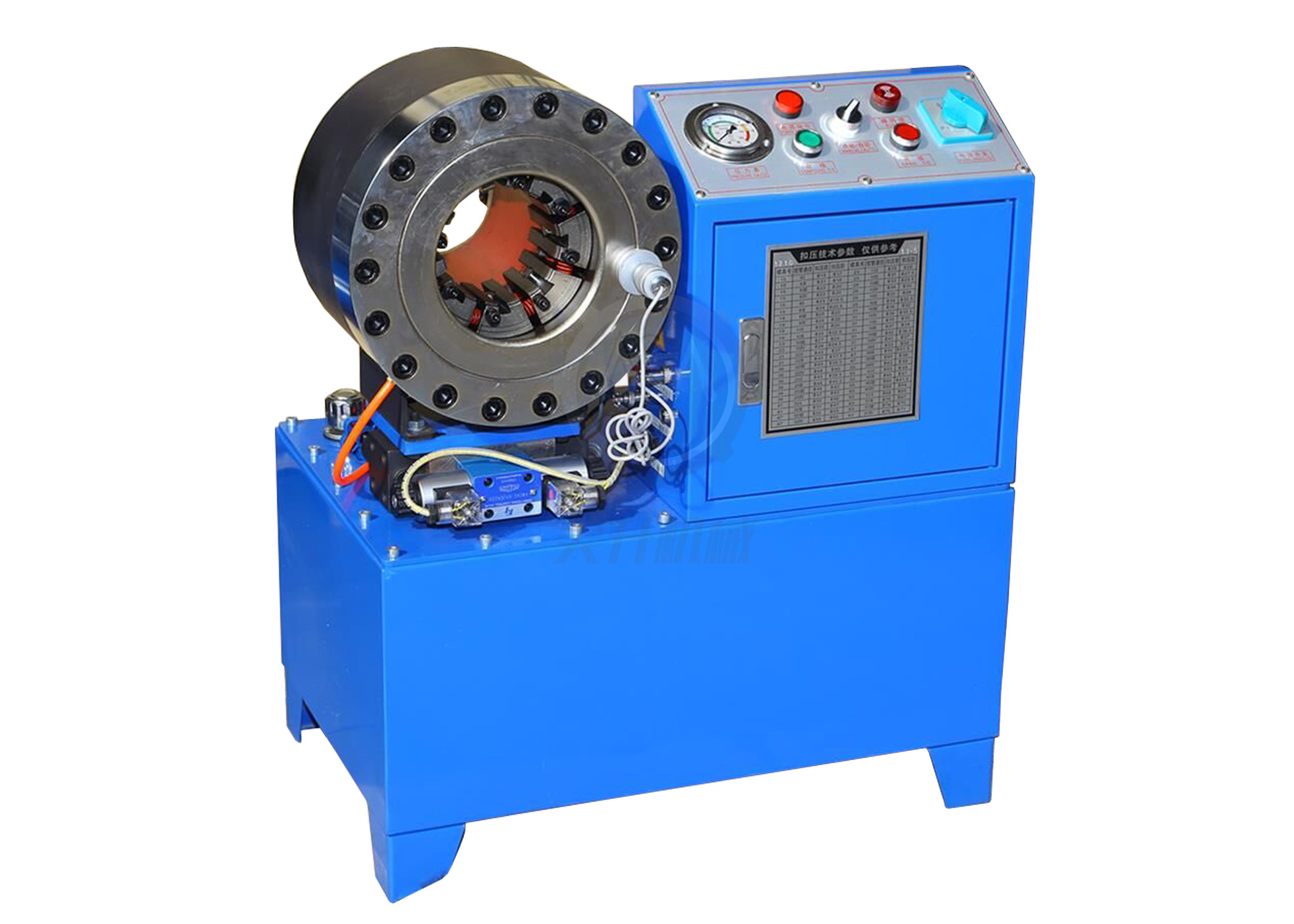

HOSE CRIMPER SWAGE MACHINE MS-51
DESCRIPTION
MS-51 high pressure hose crimping machine is for workshop hose repair hose service. It has big opening and large power, capable crimping hose fitting from 1/8'' to 2'' with high tensile steel wire braided. It is designed and used in tough enviroment. Crimping with low noise.
MAIN FEATURES
► Good hardness hydraulic cylinder one piece design
► Reasonable operate panel, two operate mode with automatic crimping
► High accurate dial, prevent tapering of hose assembly
► Foot pedal is standard make hands free, improve the efficiency
► Lamp to help the user see clearly during dark light
TECHNICAL DATA
| Model | MS-51 Cable Pressing Machine |
| Crimping Range | 14 - 87(mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) Mono - phase |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
HOSE CRIMPER 51 DIE SETS
| Die No. # | Crimping Range | Length |
| 6* | 6 ... 8mm | 35mm |
| 8* | 8 ... 10mm | 35mm |
| 10* | 10 ... 12mm | 35mm |
| 12* | 12 ... 15mm | 35mm |
| 15 | 15 ... 19mm | 60mm |
| 19 | 19 ... 23mm | 60mm |
| 23 | 23 ... 26mm | 60mm |
| 26 | 26...31mm | 60mm |
| 31 | 31 ... 36mm | 70mm |
| 36 | 36 ... 41mm | 70mm |
| 41 | 41 ... 47mm | 70mm |
| 47 | 47 ... 55mm | 80mm |
| 55 | 55 ... 63mm | 80mm |
| 63 | 63 ... 69mm | 80mm |
| 69* | 69 ... 76mm | 90mm |
NOTE
• " * " for non standard mold
• Customized molds are available
• Special voltage 110V, 208V, 240V, 415V are availbale
OPTIONAL
• Quick Change Tool
• Quick Change Die Set Rack
