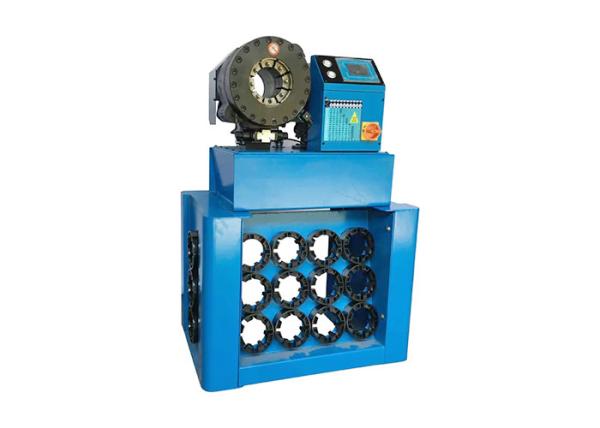

WORKSHOP CHOOSE MANUAL HOSE CRIMPER
MS-E130
MAIN ADVANTAGES
1) Unique two bevel design, high force
2) Advanced oil system, auto heat releasing
3) Quick crimping and opening speed
4) High efficiency and top accurate crimping with FINN Dial
5) Stable performance even after years of service
DESCRIPTION
MS-E130 hose crimper is designed based on the famous FINN models with compact structure and big crimping force. It is capable of crimping high pressure steel braided hose from 1/4'' to 2''.
TECHNICAL DATA
| Model | MS-130 Manual Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 25 (mm) |
| Die Sets | 10 |
| Die Set Type | 130 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 560 (mm) |
| Weight | 190 (KG) |
130 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 60 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 110 |
NOTE
1) Customized die sets are available;
2) Special voltage 110V, 208V, 240V, 415V are availbale;
3) " * " for non standard die sets
OPTIONAL
1) Quick Change Tool
2) Quick Change Die Set Rack;
3) UC control;
4) Foot Pedal;
5) Pressure Gauge;
6) Normal Rack
► QUALITY FORGED HYDRAULIC HEAD
High surface hardness 55-58HRC, good anti wear and dust, long service time.
► DOUBLE BEVEL DIE BASE
Unique design, big crimping force, well connect with the oil cylinder
► FINN DIAMETER DIAL
High accuracy up 0.01mm, stable performance, ideal choice for accurate crimping work
► SAMPLES AND APPLICATIONS
Crimping machine can be used for quick jointing of material, like high pressure hydraulic hose, industrial low pressure hoses, pipes, or cable wire.
