Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-51M

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Product Name : 51M Manual Hose Crimping Machine

Crimping Range : 14-87mm

Hose Size : 1/4-2inch

Die Sets : 10

Max. Opening : 31mm

Crimping Force : 350T

System Pressure : 31.5Mpa

Power : Hand Pump

Size : 730*550*680mm

Weight : 170Kg

Contact Now

6 - 51mm MANUAL CABLE CRIMPING MACHINE MS-51M

DESCRIPTION

MS-51M manual hand pump hose pressing machine. It is specially designed and manufactured for site crimping in the wild, when there is no electricity device supply. With big power hydraulic manual oil pump, it can crimp up to 51mm 4SH 4SP hydraulic high pressure flexible hose.

ADVANTAGES

1. Small structure, easy to take to any place;

2. High accurate dial, more convenient;

3. Hard polishing mold, good hardness;

4. Safe die sets hold box.

TECHNICAL DATA

Model

51M Manual Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

350 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

31 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

Manual Pump

Motor Power

Manual Pump

Length

730 (mm)

Width

550 (mm)

Height

680 (mm)

Weight

170 (KG)

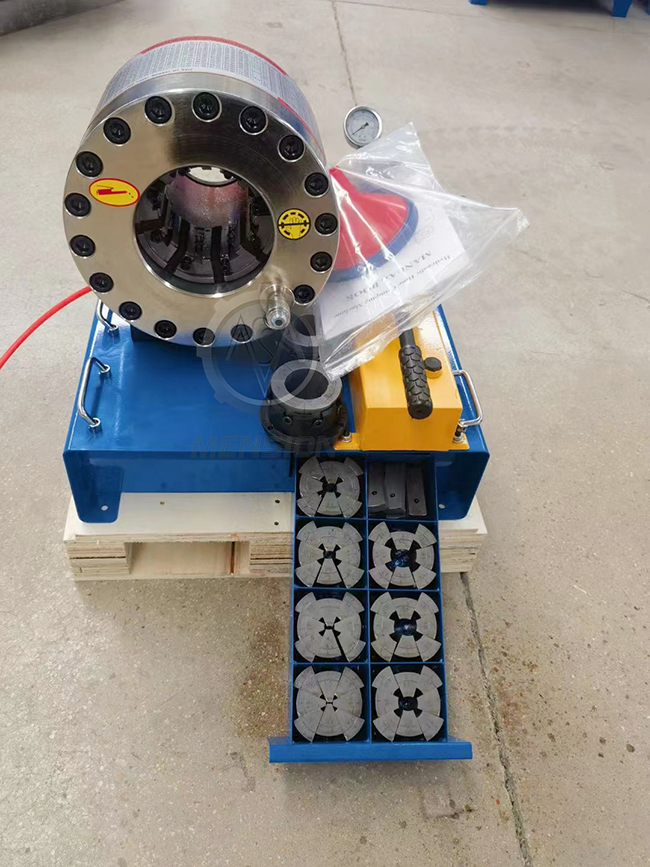

Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine

NOTE

- Customized die sets are available;

- Max. opening is the stroke between die sets fully closed and fully opened.

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

- UC control;

51 CRIMPER STANDARD DIE SETS

Die No.

Crimping Range

6*

6 - 8mm

8*

8 - 10mm

10*

10 - 12mm

12*

12 - 14mm

14

14 - 16mm

16

16 - 19mm

19

19 - 23mm

23

23 - 27mm

27

27 - 31mm

31

31 - 35mm

35

35 - 41mm

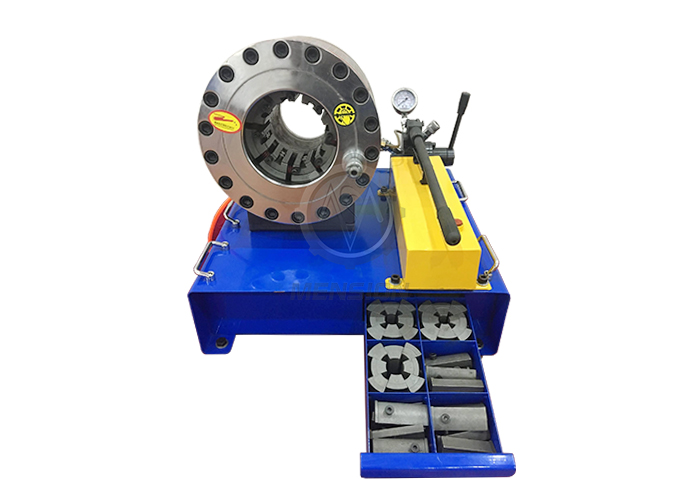

Hydraulic Cable Crimpers For Sale Manual Hose Crimper Hydraulic Hose Assembly Machine
