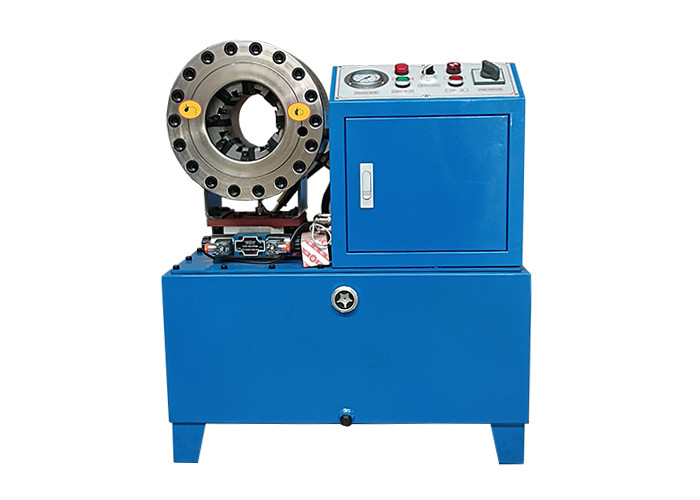

Hydraulic Hose Crimping Machine High Pressure Hose Crimper Pipe Crimper For Sale

Name: Hydraulic Hose Crimping Machine High Pressure Hose Crimper Pipe Crimper For Sale
Brand: MENSION
Price: 1 USD

Quality Hydraulic Hose Crimping Machine High Pressure Hose Crimper Pipe Crimper For Sale wholesale

Brand Name : MENSION

Model Number : MS-51

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

System Pressure : 31.5Mpa

Power : 3KW

Size : 670*430*820mm

Weight : 260Kg

Product Name : Hydraulic Hose Crimping Machine

Contact Now

WORKSHOP CHOOSE HYDRAULIC HOSE CRIMPING MACHINE MS-51

DESCRIPTION

MS-51 is the basic hose press crimping machine with crimping range of 1/4 inch to 2 inch. Crimping can be done with foot pedal or the button, with fully automatic and semi-automatic mode.

MAIN FEATURES

1. Forged hydraulic crimping clylinder, high hardness;

2. Automatic and semi-automatic;

3. Oil level ruler, more convenient;

4. Pedal switch as optional, more flexible;

5. Working light to make crimping work more clear.

TECHNICAL DATA

Model	MS-51 Hose Crimper
Crimping Range	14 - 87 (mm)
Crimping Force	500 (T)
Hose Size	1/4 - 2 (inch)
Max. Opening	30mm
Die Sets	10
Die Set Type	51
System Pressure	31.5 (Mpa)
Accuracy	0.05 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3 (KW)
Length	670 (mm)
Width	430 (mm)
Height	820 (mm)
Weight	260 (KG)

Hydraulic Hose Crimping Machine High Pressure Hose Crimper Pipe Crimper For Sale

51 HOSE CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8mm	35
8*	8 - 10mm	35
10*	10 - 12mm	35
12*	12 - 15mm	35
15	15 - 19mm	60
19	19 - 23mm	60
23	23 - 26mm	60
26	26 - 31mm	60
31	31 - 36mm	70
36	36 - 41mm	70
41	41 - 47mm	70
47	47 - 55mm	80
55	55 - 63mm	80
63	63 - 69mm	80
69*	69 - 76mm	90

NOTE

- * for non standard die sets;

- Customized die sets with different shape length are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;

OPTIONAL

- Quick Change Tool;

- Quick Change Die Set Rack;
