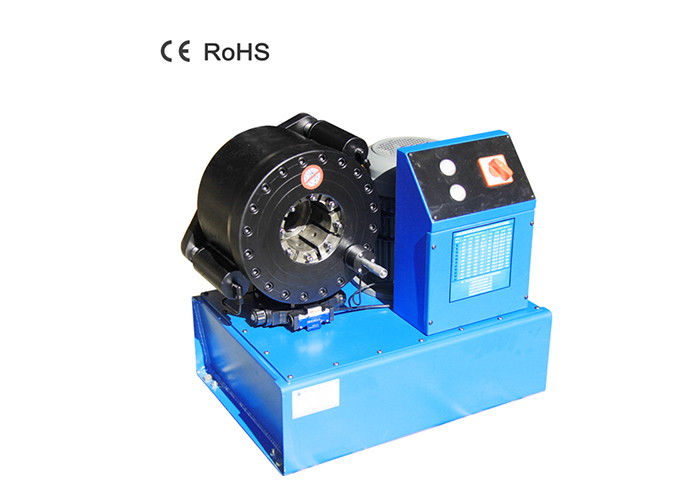

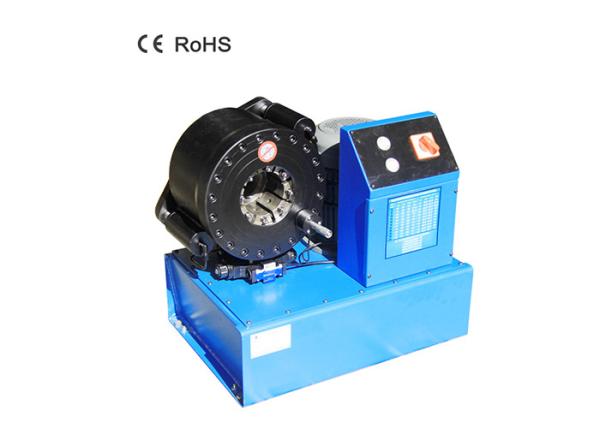

HYDRAULIC HOSE CRIMPING MACHINE USED MS-E38U
DESCRIPTION
MS-E38U is an ideal choice for machinery repair workshop with world advanced structure and human design die sets. The operate panel is very simple, so it has been favored by new users.
WHY CHOOSE IT?
1) P32 design, advanced oil transfer passway, quick crimping;
2) Easy to operate with simple panel;
3) Crimping is controled manually, safe and convenient;
4) One piece cylinder, back cylinder on the outside, easy maintenance.
TECHNICAL DATA
| Model | MS-E38U Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4SH |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 380 (V) 50HZ Three Phase |
| Motor Power | 3 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
| Hydraulic Oil | 50 (L) |
| Warranty | 13 (Months) |
38 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
NOTE
1) Customized die sets are available with different size or shape;
2) Special voltage such as 110V, 208V, 220V, 240V, 415V (60HZ) are availbale;
3) Foot pedal is available to make the hands free;
4) * for non standard die sets.

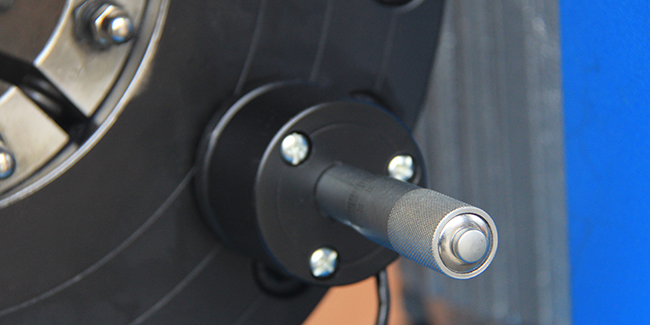

► HIGH ACCURATE CRIMPING DIAL
Crimping dial fixed on the front of the cylinder, working with high accuracy

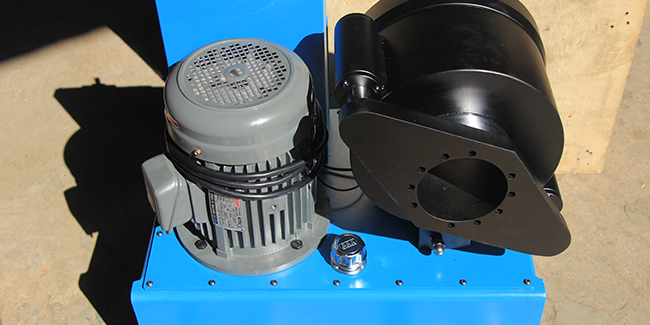

► COMPACT STRUCTURE
Small crimping head makes the machine light weight, but crimping force is bigger than other series

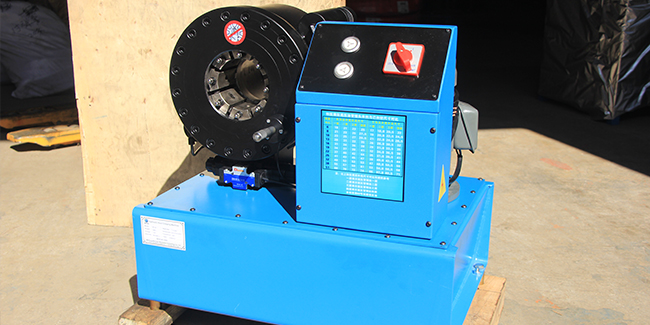

► CRIMPING REFERENCE SHEET
There is a crimping reference sheet paste on the electric box, help the new user handle hose crimping size

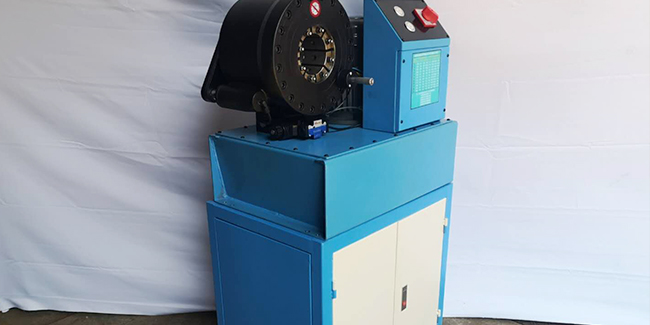

► STANDARD MOUNTING RACK
E38 can be mounted on a standard rack design by our company, make crimping more comfortable

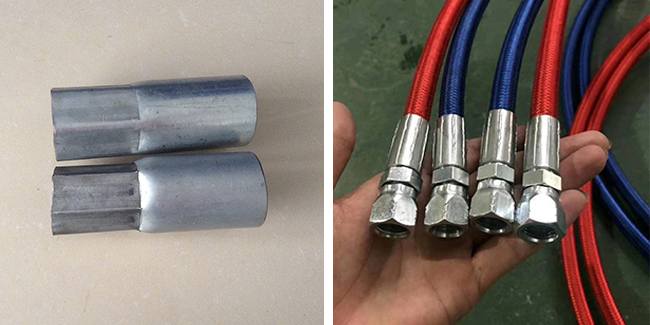

► APPLICATION FILED
Our Crimping machines are used globally in the such industries hydraulic machinery and construction machinery (excavator, roller, crane, bulldozer, driller, hammer), agricultural equipment (tractor, rotary tiller, ridge machine, sprayer), modern green house construction building scaffolding, jointing and welding industry

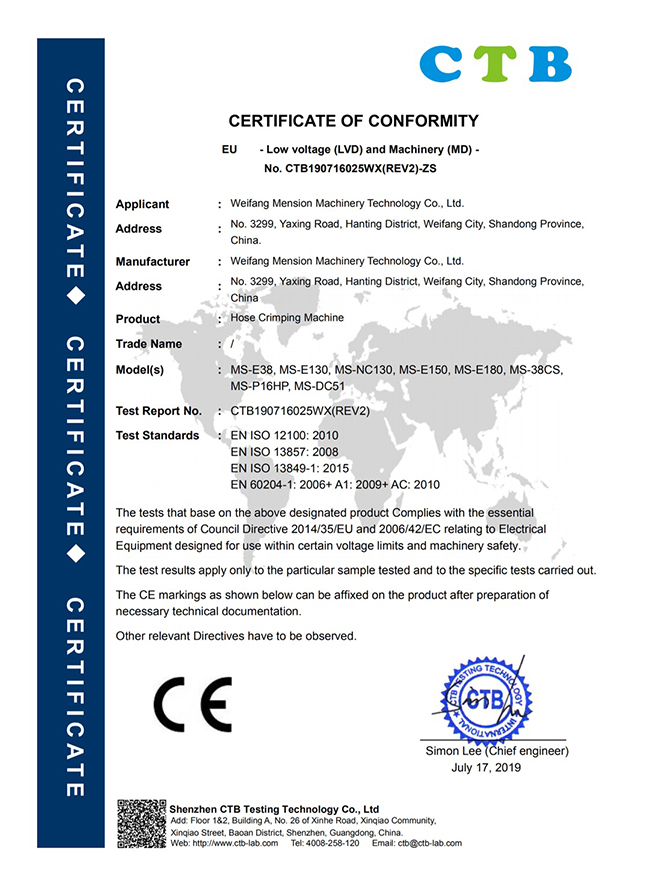

► CERTIFICATE
CE certificate for hose crimping machine
