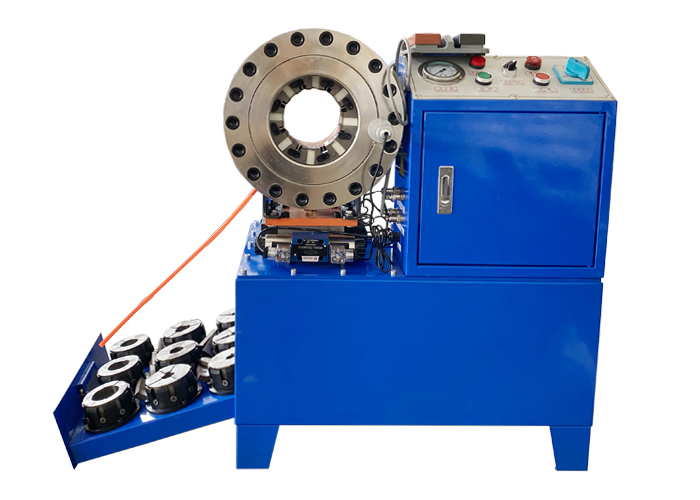

POPULAR DX68 HYDRAULIC HOSE CRIMPING MACHINE
DESCRIPTION
DX68 pipe press tool is a hot sale domestic design hose crimping machine based on DX68/69 series. It provide 500T crimping force, can be worked automatically or manually depends on different need. The hose crimping machine is offered with wheels, easy for move. With a foot pedal can make the hand free during crimping.
MAIN FEATURES
1. Forged crimping clylinder, high hardness;

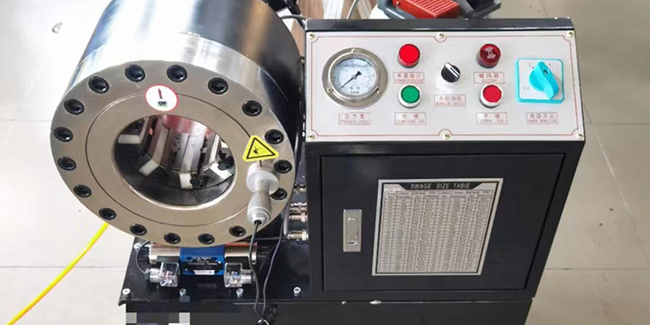

2. Multifunctional operate panel, two operate mode;
3. Pressure Gauge, system shown clearly during crimping;
4. Foot pedal as standard to make hands free;
5. Working light to make crimping work more clear.
TECHNICAL DATA
| Model | DX-68 Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
51 HOSE CRIMPER DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;
OPTIONAL
- Quick Change Tool;
- Quick Change Die Set Rack;

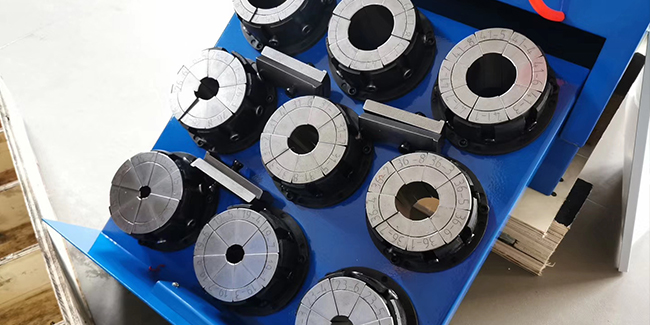

► PRESSING DIE SETS WITH HIGH HARDNESS
10 sets dies for crimping hose from 6mm to 51mm, hardness 59-63HRC

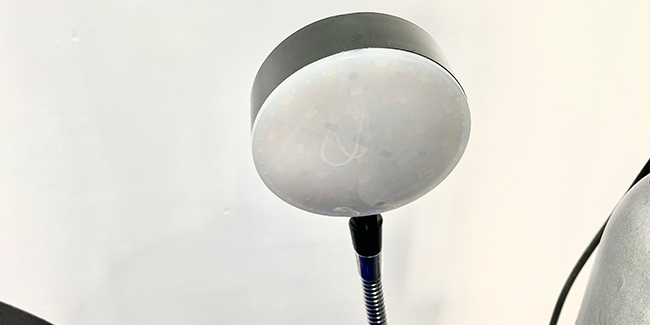

► WORKING LIGHT
Make the hydraulic hose crimping work more safe and easy. The crimping assisstant light can supply a clear view for the whole crimping progress, even under dark enviroment, the user can still making hydraulic hose assembly with this hose crimper.

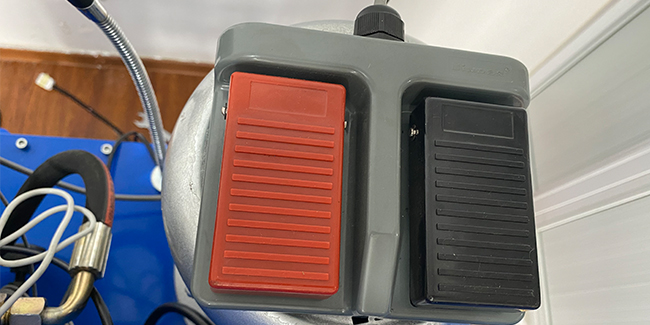

► PEDAL SWITCH
MS-51KH hydraulic hose pressing machine supply foot pedal as standard, the advantage is it can free the hand when doing pressure pipe and fitting swaging, so even for big size hose crimping, making crimp work more easier and convenient.
► OEM SERVICE
Customized color and Customized outlook for hose crimping machine. OEM service available for all our cable crimping machines.

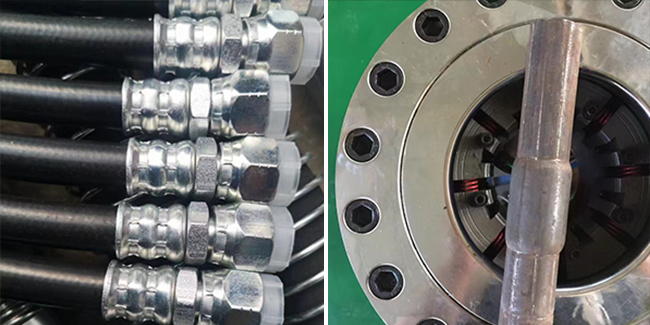

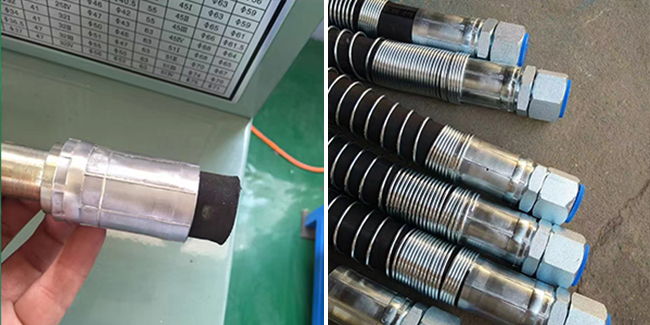

► APPLICATION FIELD
The basic fucntion of a hose crimping machine is for making hose assembly, but a hydraulic crimping machine can not only do rubber hose crimping, but can be used for quick jointing of other materials, like cables pressing, low pressure water pipes, wires crimping, ropes swaging, automotive brake lines fabricating, etc.
