High Pressure Hydraulic Hose Fitting Swaging Machine Hyd Hose Crimping Machine

  • 1
  • 2

Brand Name : MENSION

Model Number : MS-51KH

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

Product Name : 51KH Hose Crimping Machine (DX68)

Application : Workshop

System Pressure : 31.5Mpa

Power : 3KW

Size : 670*430*1520mm

Weight : 310Kg

Contact Now

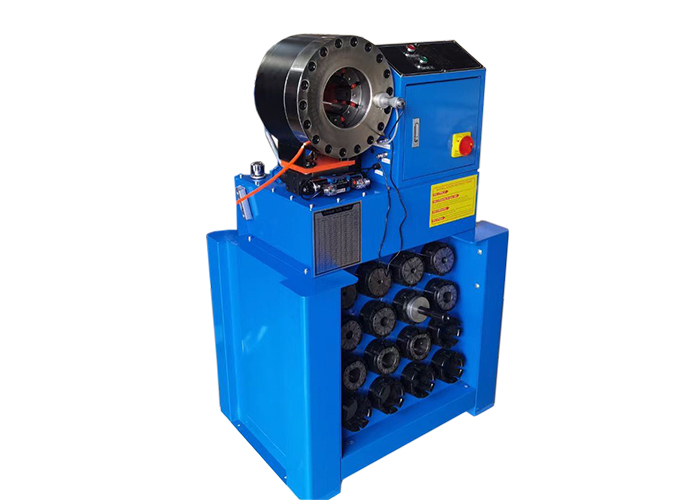

HIGH PRESSURE DX HOSE CRIMPING MACHINE MS-51KH

DESCRIPTION

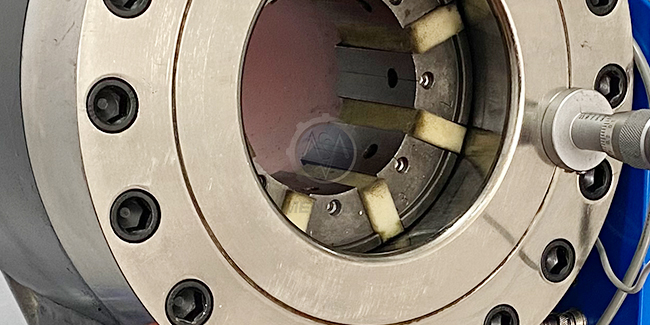

MS-51KH is high pressure hydraulic hose press crimping machine updated model. It is with quick die change and die set rack, make the crimping work more flexible. The quick die change tool enable the die sets changed or installed at one time, instead of one by one.

MAIN FEATURES

1) Simple structure, easy installation and maintation.

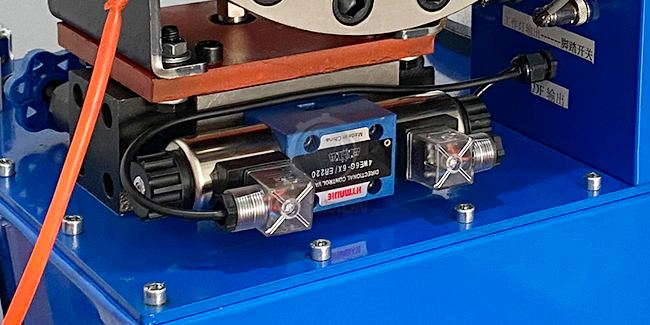

2) Advanced world famous brand components in hydraulic sapre parts, electric parts and operation parts.

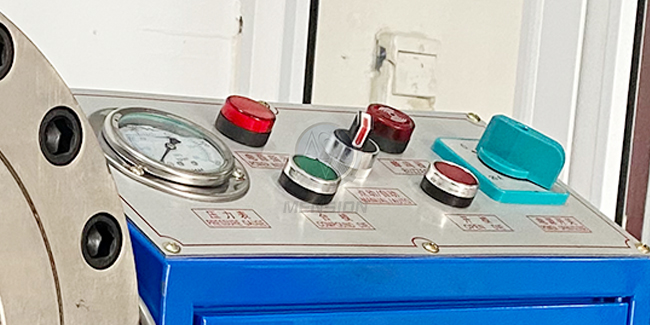

3) Button way plus foot pedal to control the die opening and closing.
4) Running in a high speed, no pollution.

TECHNICAL DATA

Model

MS-51KH Hose Crimping Machine (DX68)

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

1520 (mm)

Weight

310 (KG)

High Pressure Hydraulic Hose Fitting Swaging Machine Hyd Hose Crimping Machine

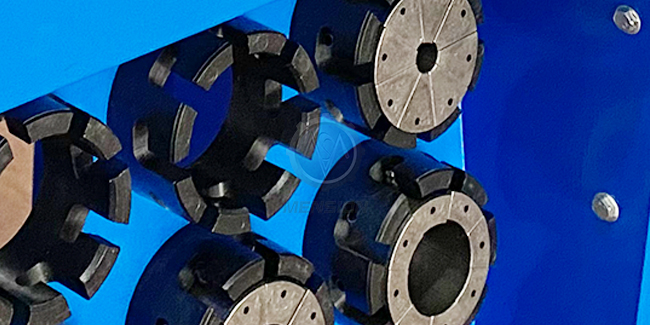

51 HOSE CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 15mm

 35

15

15 - 19mm

 60

19

19 - 23mm

 60

23

23 - 26mm

 60

26

26 - 31mm

 60

31

31 - 36mm

 70

36

36 - 41mm

 70

41

41 - 47mm

 70

47

47 - 55mm

 80

55

55 - 63mm

 80

63

63 - 69mm

 80

69*

69 - 76mm

 100

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
