SP52 Hose Pressing Machine DX68 Manual Hydraulic Hose Crimping Machine

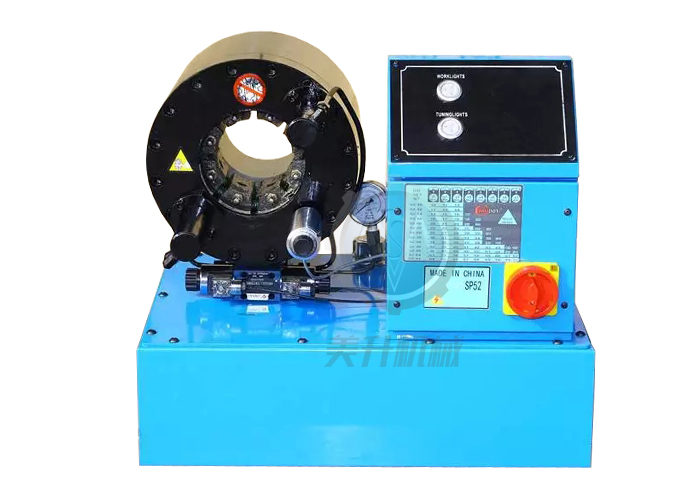

MANUAL HOSE CRIMPING MACHINE MS-SP52
DESCRIPTION
This is one basic bench-top hydraulic hose crimping machine with compact ergonomic structure. I can crimp the high pressure hose with high accuracy up to 2 inch 4 layers steel braided.
The crimping range for this manual hose crimper is 14mm to 87mm, can cover the crimping work of common flexible pressure hoses, water or air hoses, automotive brake lines, air conditioner hoses, electric wires and cables.
It is very easy to operate the crimping tool, as it only have two control buttons on the operate panel, one controls the dies closing and one controls the dies opening.
ADVANTAGES
1) Advanced design for double conical hydraulic cylinder,
2) Quick speed for a large production of hose assemblies,
3) Micrometer with a high precision up to 0.01mm,
4) Can press ferrules with different materials with surface protection.
TECHNICAL DATA
| Model | MS-SP52 Cable Pressing Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4'' - 2'' (inch) |
| Max. Opening | 25 (mm) |
| Die Sets | 10 |
| Die Set Type | P52 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 380 (V) |
| Motor Power | 4 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
SP52 HOSE PRESSING MACHINE DIE SETS
| Die No. | Crimping Range | Length |
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 60 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
NOTE
1) Customized crimping die sets are available;
2) Special voltage 110V, 208V, 240V, 415V are availbale;
3) * for non standard die sets.
OPTIONAL ACCESSORIES
1) Quick Die Change Tool;
2) Die Set Rack/ Machine Stand;
3) UC/CNC Control;
4) Foot Pedal Switch;
5) Pressure Gauge;
6) Normal Stand.
► APPLICABLE PLACE FOR SP52 HYDRAULIC CRIMPING MACHINE

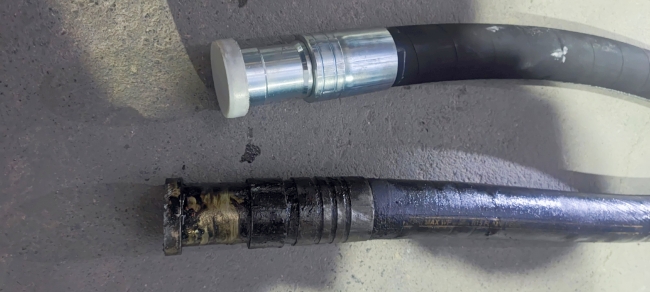

SP52 cable pressing tool is often used for workshop hose repair and maintenance service. The standard die sets are with high hardness, can swage hydraulic high pressure 4 layers or even 6 layers steel wire braided hose from 1/4'' to 2'', each die sets has each own crimping size, we recommend different hose size use different die sets to get the most ideal crimping effect.
