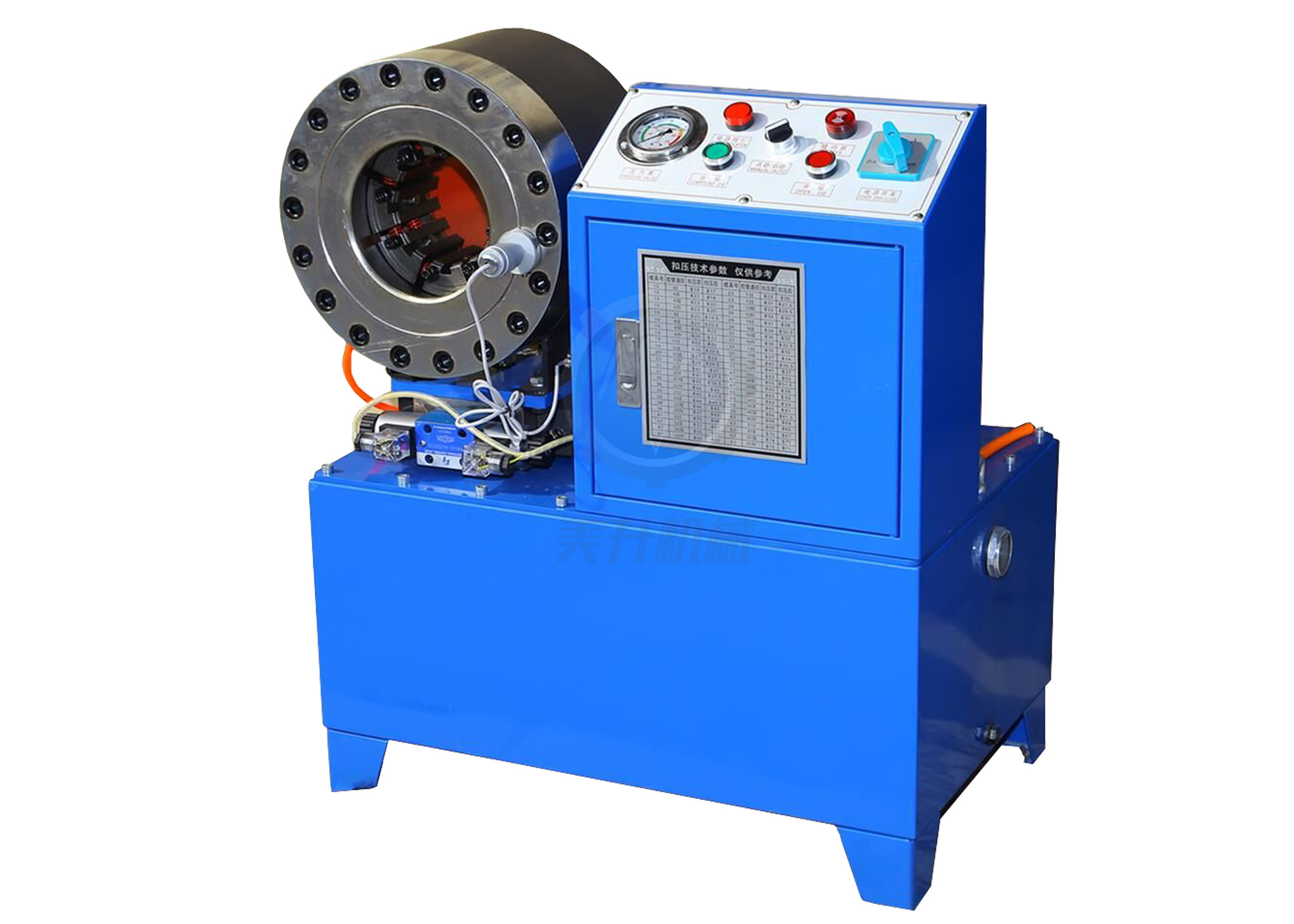

Finn Power Swage Hydraulic Hose Making Machine DX68 Crimp Hydraulic Fitting

Name: Finn Power Swage Hydraulic Hose Making Machine DX68 Crimp Hydraulic Fitting
Brand: MENSION
Price: 1 USD

Quality Finn Power Swage Hydraulic Hose Making Machine DX68 Crimp Hydraulic Fitting wholesale

Brand Name : MENSION

Model Number : DX-68

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Crimping Range : 14 - 87mm

Hose Size : 1/4 - 2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

Product Name : DX68 Hose Crimping Machine

Application : Service

System Pressure : 31.5Mpa

Power : 3KW

Size : 670*430*820mm

Weight : 260Kg

Contact Now

Hydraulic Hose Swage Machine DX68 For Workshop Pipe Fitting Vehicle Maintenance

DX68 HOSE SWAGE MACHINE

DESCRIPTION

DX-68 hose crimper is designed for high pressure hydraulic rubber hose from 1/8 inch to 2 inch crimping. Now it has been one of the most popular model in many countries due to its high cost-effective.

MAIN FEATURES

► Multiple operate panel, easy to learn

► Oil pump with large flue for big crimping force

► Quality reliability

► Worldwide distributor

► High accuracy

TECHNICAL DATA

Model	DX-68 Pipe Pressing Machine
Crimping Range	14 - 87(mm)
Crimping Force	500 (T)
Hose Size	1/4 - 2 (inch)
Max. Opening	30 (mm)
Die Sets	10
Die Set Type	51
System Pressure	31.5 (Mpa)
Accuracy	0.05 (mm)
Control	MS
Standard Voltage	220 (V) Mono - phase
Motor Power	3 (KW)
Length	670 (mm)
Width	430 (mm)
Height	820 (mm)
Weight	260 (KG)

Finn Power Swage Hydraulic Hose Making Machine DX68 Crimp Hydraulic Fitting

HOSE CRIMPER 51 DIE SETS

Die No. #	Crimping Range	Length
6*	6 ... 8mm	35mm
8*	8 ... 10mm	35mm
10*	10 ... 12mm	35mm
12*	12 ... 15mm	35mm
15	15 ... 19mm	60mm
19	19 ... 23mm	60mm
23	23 ... 26mm	60mm
26	26...31mm	60mm
31	31 ... 36mm	70mm
36	36 ... 41mm	70mm
41	41 ... 47mm	70mm
47	47 ... 55mm	80mm
55	55 ... 63mm	80mm
63	63 ... 69mm	80mm
69*	69 ... 76mm	90mm

NOTE

• " * " for non standard mold which will not come with the machine

• Customized molds are available with different shape and size

• Special voltage 110V, 208V, 240V, 415V are availbale

OPTIONAL

• Quick Change Tool

• Quick Change Die Set Rack
